FC-UV1015

FC-UV1015 UV-LED Direct to Substrate Printer

Freecolor FC-UV1015 uv printer combines our fast production speeds with a larger product capacity. Print size up to 100x150cm ( 40''x60'') ,Featuring industrial-strength components, multiple high-performance print heads and a newly configured, CMYK LC LM + White+ Varnish UV-ink configuration, this printer will produce vibrant full color and textured imprints on a huge variety of substrates.

Physical Features:

FC-UV1015

Full steel structure body , aluminium alloy bed and machined surface plus milling parts

Double lead screw step with servo motor

3 pieces PRECISION PRINT HEADS FOR MAXIMUM PRINT SPEED AND COLOR

4 pieces UV-led lamp with water cooling sytem

Curable imprint area of 40 x 60 inches (100x150cm) with 3 or 7 inch height clearance

Bulk ink supply system easily providing access for maintenance and ink replacement.

Built-in vacuum bed holds flat, lightweight substrates in place.

Flatbed is open at the back and front, allowing oversized products to be loaded and products in trays can be accessed during print runs for continuous loading and unloading (max. product width: 43.3").

Printer measures approx. 78" W x 90" L x 46.8" H; Weighs approx. 600kg.

Shipping weight approx. 750kg/7.5CBM

Ink Capabilities

This new ink system includes 18 channels - 6 channels for the full color CMYK LC LM inks and 6 Chanels for white inks plus 6 channels for Varnish.

Bulk Ink System
Each ink color omes in a 500 mL ink tank The bulk ink delivery system reduces the need for ink refills and maintenance and provides an uninterrupted ink flow. Simply add the ink into empty ink and you are ready to continue printing. No cartridge filling or cleaning necessary! Our ink produces little to no fumes, so costly ventilation systems are unnecessary, One set of ink will print up to 100,000 square inches!

White Ink with Circultion System
The introduction of white ink allows you to print directly onto dark and clear materials. You can print solid white imprints, or use it as an opaque base for color imprints. The printer comes with 6 white channels assigned, giving you control over the amount of white ink that is applied to your products. It can also be printed as a gradient under photographs, giving you white highlights where you need them.

Varnish function
With varnish function bring you glossy and special 3D artistic effect

Ink Lack Alarm System
Equipped with ink lack alarm system to remind you to fill ink when ink near finish.

Production Features

Freecolor

Freecolor's FC-UV1015 has a large imprint area of 40”W x 60”L x 3”H ( or 7''H). The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (1-3mm) from the print head to maintain the highest quality imprints possible.

Our repositionable tray fixtures make it easy to print on products of varying shapes and materials. Simply lift off one tray and slide in a new one to change from one product to another. Print speed for a full print run ranges from 10 mins (only color) to 60 mins (high emboss effect). The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!

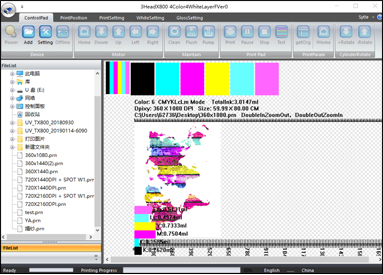

Software

Freecolor offers advanced RIP and print program software, depending on your business' needs. Some of the features included in software include:

FC-UV1015

Pre-loaded settings for various substrates

Control over printer functions and channel settings

Adjust ink density, saturation, and color controls

White ink options – more than 26 modes optional

Allows you to add your own ICC color profiles to the RIP

Allows you to create templates for product positioning

Repeat Function allows you to copy artwork for multiple product prints

Control dot size to improve imprints on curved or uneven surfaces

Print settings: Uni-directional or Bi-directional

Resolution settings:

360/720x1080 – photography, fine detail

360/720x1440 – photography, very fine detail, high quality, smooth substrates.

Freecolor also offers customized ICC color profiling to improve the accuracy and consistency of color imprints from one substrate to another.

Tech Support

Freecolor offers remote training for you and your staff, and we will walk you through the installation of your new UV6090 printer. Freecolor offers a 1-YEAR WARRANTY on our UV6090 printer to give you peace of mind. We pride ourselves on our top notch technical support via telephone, email, live chat and skype video so you can reach us any time you have a question or run into difficulty

FC-UV1015

Each printer is shipped with the following:

1 x INK SET 8 colors, 500mL each (C, M, Y, K, LC, LM, WHITE, VARNISH ) and maintenance syringes

1 x mini supply of lubricants for greasing the rails and tracks

1 x mini supply of cleaning solution for printer

1 x Screw Driver

1 x Spare Damper

1 x Set of clear sheets for nozzle checks and test printing

1 x bag of lint free wipes

1 x Manual

For more details, click here to download PDF Brochure, or See More Details
